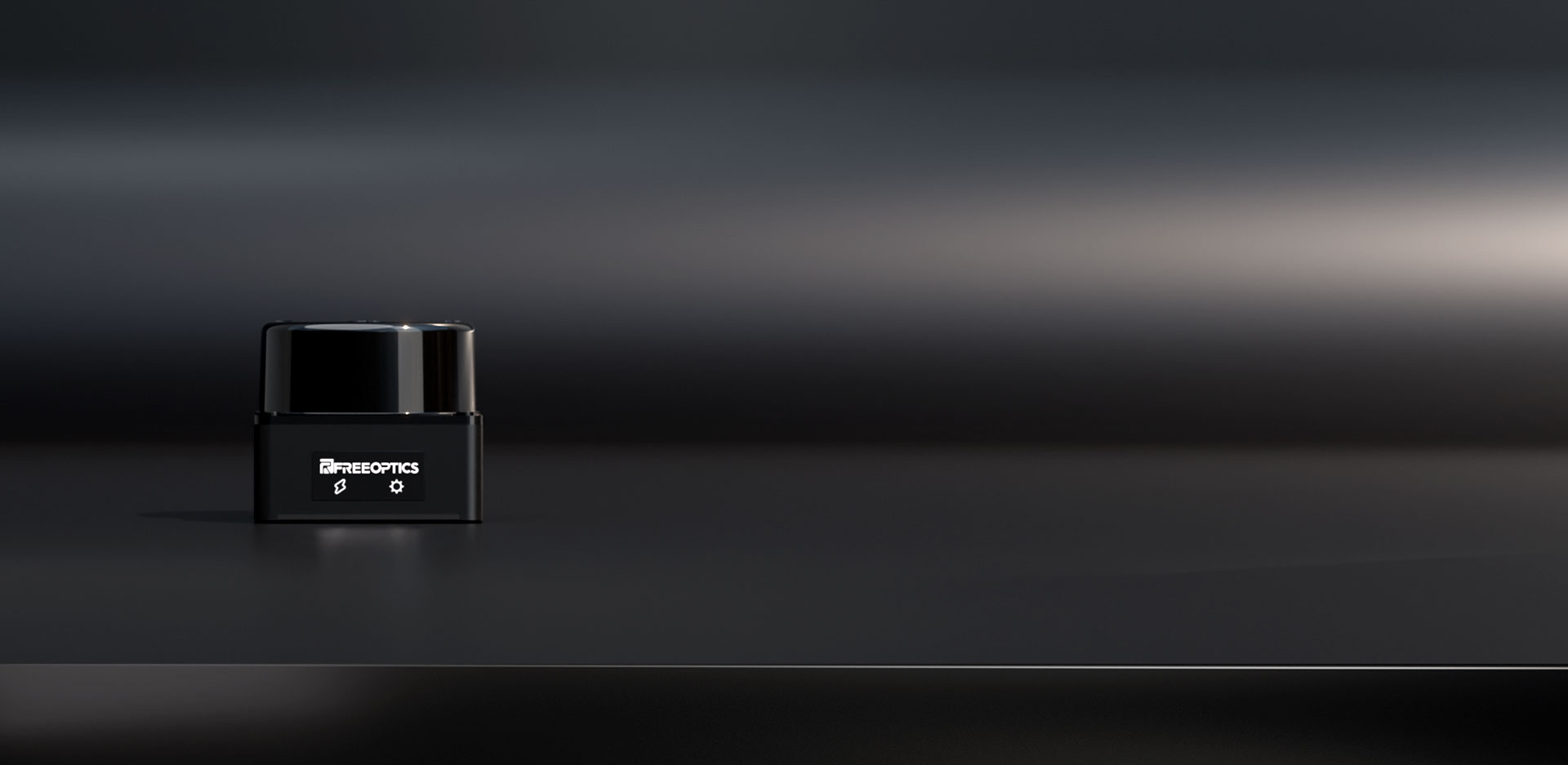

Ultra long scan radius
of 45 meters
Excellent optical resolution system
accuracy within ±1cm
Compact structure and
simple integration
65mm×56mm×65mm
360°full field of view
No blind zone
Ultra-high point
frequency over 150K
Nationwide substitution
Measuring range |
0.1-45m Ranging capability: 0.2-8m@ 3% reflectivity 0.15-20m@ 10% reflectivity 0.1-45m@ 90% reflectivity 0.1-45m@ PL560 reflectivity |
|---|---|
| Blind zone range (measured from optics cover) | 5cm |
| Range accuracy | ±30mm |
| Angular resolution | 0.05°@15Hz 0.1°@30Hz |
| Scanning method | dToF |
| Scanning angle | 360° |
| Light source | Pulsed laser diode |
| Laser wavelength | 905nm |
| Laser safety class | Class 1 |
| Beam divergence angle | 2mrad×8mrad |
| Output resolution | 1.0mm |
| Sampling rate | 108kHz |
| Response time | ≤33ms(30Hz) ≤66ms(15Hz) |
|---|---|
| Supply voltage | DC9~28V |
| Power consumption | ≤5W |
| Interface | Ethernet(TCP) |
| Certified authority | TÜV Rheinland |
| Standards | CE: AE 50638838 0001 CB: JPTUV-163435 FCC: AK 50638831 0001 UL: R 50639479 0001 CU 72406141 0001 |
| Dimension(W×H×D) | 65mm × 56mm × 65mm |
|---|---|
| Weight | 0.28kg |
| Case material | Aluminum |
| Housing color | RAL 9005 (Black) |
| Enclosure rating | IP65 | |
|---|---|---|
| Ambient light immunity | ≤100000 Lux | |
| Operating temperature | -20°C~50°C | |
| Storage temperature | -30°C~70°C | |
| Shock resistance | IEC 60068-2-27 | Half-sine shock,15g,11ms,3 times per impact surface, total of 18 shocks |
| Vibration resistance | IEC 60068-2-6 | 10–55Hz, double amplitude 1.5mm, sweep rate 1 octave/min |
| Damp heat, steady state | IEC 60068-2-78 | Temperature 80°C, humidity 95%, duration 72 hours |
| Change of temperature | IEC 60068-2-14 | -20°C to 60°C, 15°C per minute,2cycles |
| Electrostatic Discharge | IEC 61000-4-2 | ±6.0kV (contact discharge), ±8.0kV (air discharge) |
| Radio Frequency Electromagnetic Field | IEC 61000-4-3 | 10V/m |
| Power-frequency magnetic field | IEC 61000-4-8 | 100A/m |
| Radio frequency conducted immunity test | IEC 61000-4-6 | 10V for DC port |
