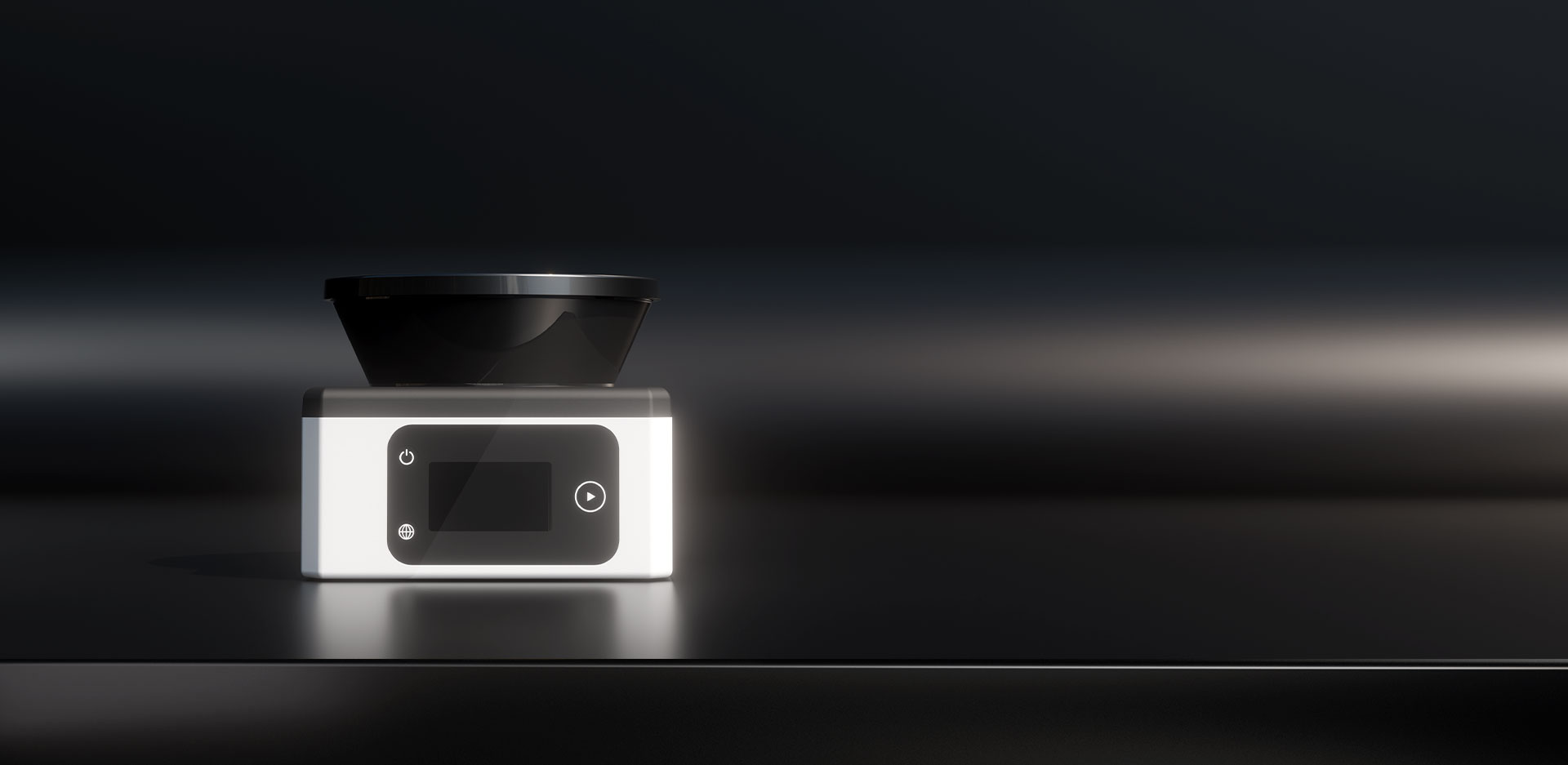

外形尺寸

技术参数

扫描系统

Detection distance Output range: 25m Detection capability: ≥ 25m@90 %Reflectivity ≥ 10m@10 %Reflectivity
Scanning principle dToF
Scan angle 270°
Angular resolution (customizable) 0.33°@15Hz/0.33°@25Hz
Scanning precision ±20mm
Types of optics Pulse laser diode
Wavelength 905nm
Laser level 1
Beam divergence angle (full angle) 10mard
Output Resolution 1.0mm
Sampling rate (customizable) ≤28KHz
Vibration resistance 10~55Hz, dual amplitude 1.5mm, scanning rate

系统整机

Response time ≤66ms(15Hz)
Operation temperature -10℃~50℃
Storage temperature -30℃~70℃
Power supply voltage DC12-26V
Power consumption ≤3W
Output type Ethernet(TCP/IP)

机械参数

Dimensions (width x height x depth) 50mm×50mm×77mm（max）
Weight (bare metal weight) Approximately 0.13kg
Shell Material PC+ABS
Shell color white

环境参数

Shell protection level IP65 GB/T 4208-2017
Ambient light immunity ≥40000Lux
Impact resistance Half sine wave impact, 15g, 11ms, 3 times/impact surface, a total of 18 impacts GB/T 2423.5-2019
Electrostatic Discharge Level 3 (contact discharge ± 6kV, air discharge ± 8kV) GB/T 17626.2-2018
Pulse group Level 2 (1kV) GB/T 17626.4-2018
Radiated disturbance test A-grade industrial grade GB/T 9254-2008
Conducted disturbance test A-grade industrial grade GB/T 9254-2008
PFMF immunity Level 5 (100A/m) GB/T 17626.8-2006
Constant damp heat test Temperature 50 ℃, humidity 95%, 72H GB/T 2423.3-2012

产品应用方向

Area detection and collision prevention

Regional inspection and collision prevention of gap areas in three-dimensional warehouses, safe operation of shuttle vehicles, collision prevention of personnel, and damage detection of pallets

In the automotive production line and EMS line, regional collision prevention, tray detection, and edge triggering can be achieved

Implement edge detection, edge restriction, and unmanned automatic parking in automatic parking garages

Detection of small objects such as anti-collision and forks at the front end of AGV automatic forklifts.

Logistics sorting line crane pick-up control, placed object superelevation monitoring, cargo identification, part picking, and automatic following

Contour measurement

With the help of radar, robots can accurately detect the objects that need to be moved and the stacking of materials during the material handling process

Navigation positioning

Industrial AGVs and equipment that do not require manual operation can be automatically identified and navigated through radar during automatic operation
